Standard Features:
- 5'x8' Assembly Table
- 45 Degree Vertical Easel
- Hold Down Beam with (3) Adjustable Hold Down Cylinders
- Squaring Bars on Left and Bottom Sides
- 1" Thick Laminated Surfaced Table
- Heavy Duty Steel Frame
- (1) Coilhose for Pneumatic Screw Gun
- Screw Gun Not Included

Technical Data and Specifications:
- Usable Table Area: 58.5" x 94.5"
- Footprint: 117" L x 48" D
- Electrical: N/A
- Air: 100 PSI

Additional Options:
R215A - Face Frame Assembly Clamp Arm

- Shipping Weight: 1200 LBS
- Shipping Dimensions: 68" X 120" X 30" H

Standard Features:
- 3'x6' Assembly Table
- 30° Vertical Easel
- Hold Down Beam with (3) Adjustable Hold Down Cylinders
- Squaring Bars on Left, Right and Bottom Sides
- (4) Universal Clamping Cylinders & Manifold
- 2" Cylinder Position Grid Pattern
- 3" Bore Clamp Cylinder Housing
- Heavy Duty Steel Frame
- Perforated Steel Table
- 6 port Manifold with 1/4" NPT Regulator/Gage
- Adjustable pressure from 20 to 130 PSI
- Foot Treadle
- (1) Coilhose for Pneumatic Screw Gun
- Screw Gun Not Included

Technical Data and Specifications:
- Usable Table Area: 33.5" x 71"
- Work Height: 33.25"
- Footprint: 91" L x 47" D x 67" H
- Electrical: N/A
- Air: 100 PSI

Additional options:
- R475A - Face Frame Assembly Clamp Arm
- U300E05 - Additional AC-20 Universal Clamp Cylinder
- U37515 - Additional Manifold Assembly
- U300E16 - Additional Foot Treadle Assembly

Shipping Weight: 714 LBS
Shipping Dimensions: 48" X 96" X 27" H

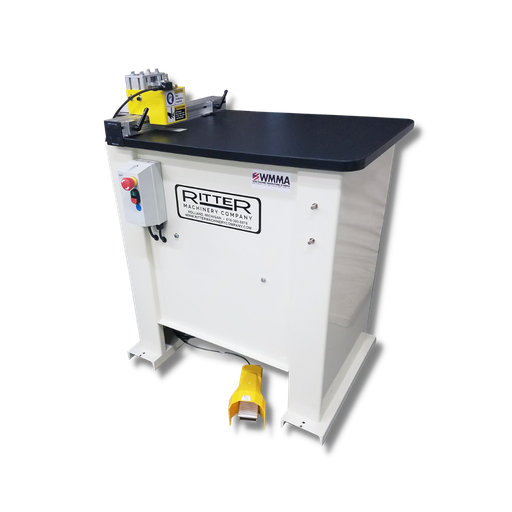

Standard Features:
- Low angle
- PLC controlled cycle
- Foot pedal operated
- Adjustable Material Stops
- Up to 2" thick material
- Cycle Time: 1.75 - 2 Sec
- Tooling Included

Technical Data and Specifications:

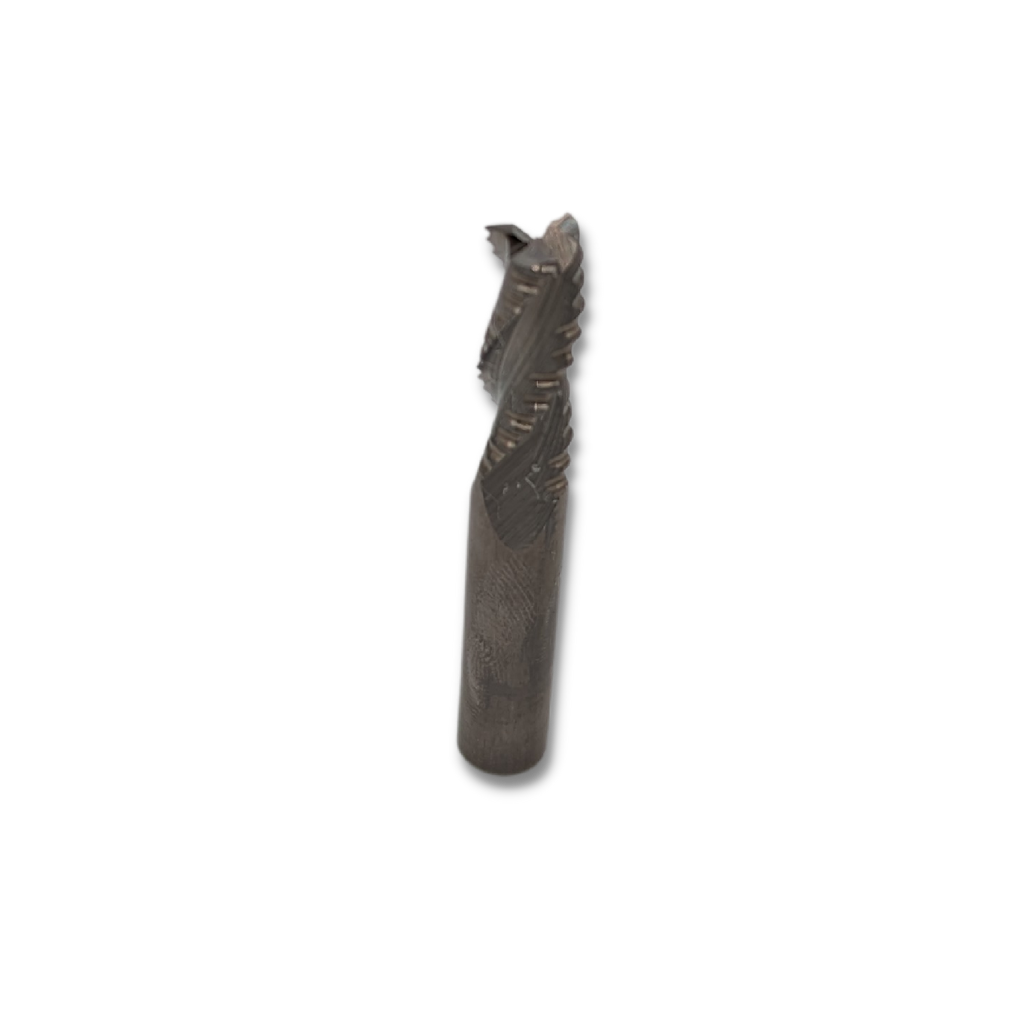

- Router Bit: 3/8” Solid Carbide, Rough Mill

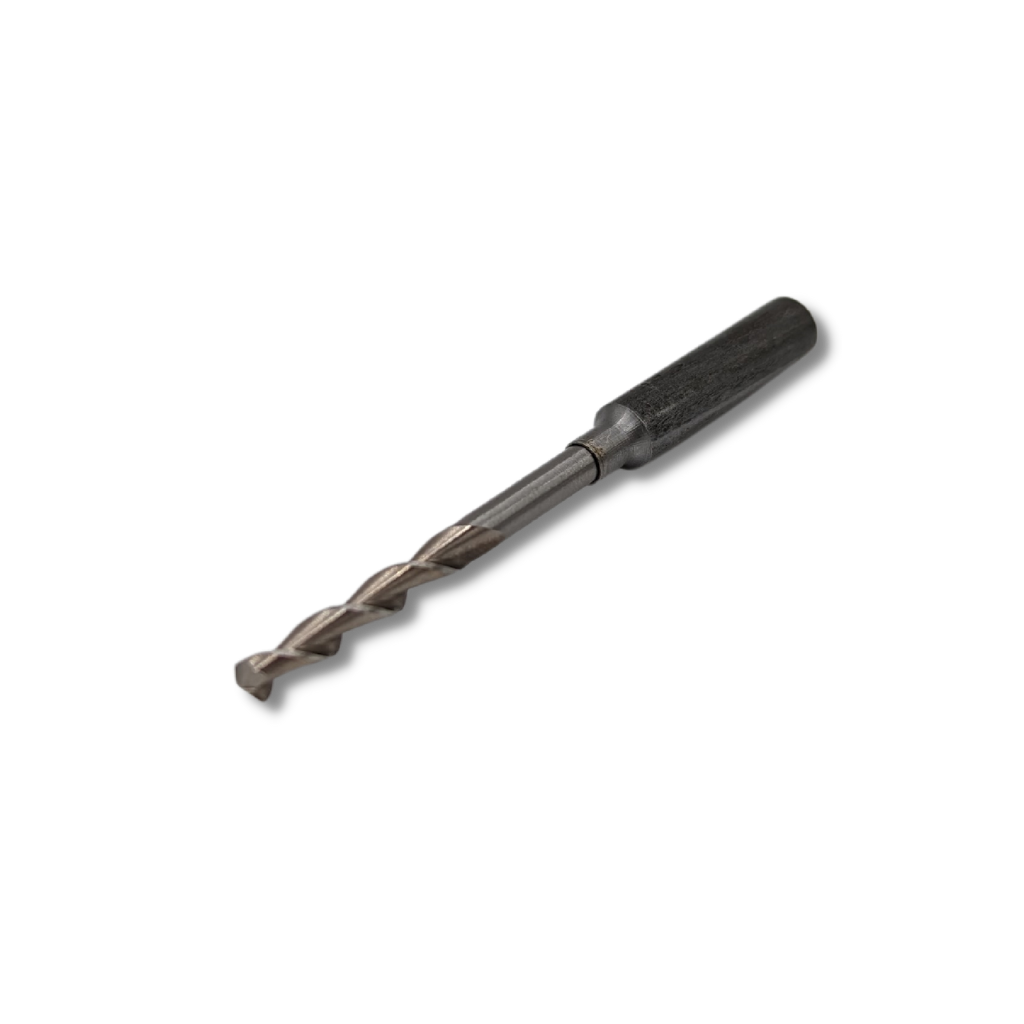

- Drill Bit: 9/64” Brad and Spur TiN-Coated Bit
- Router: 24,000 RPM, 8 A, 2 HP
- Drill: 22,000 RPM, 0.9 HP, 5.5 CFM (Intermittent)
- Electrical: 230V, 3P, 15A
- Air: 5.5 CFM at 80 - 100 PSI
- Work height: 36"
- Footprint: 27.75" x 20.5"
- Table Area: 15.75" x 23.75"
- Dust Port: 4"

- Shipping Weight: 370 LBS
- Shipping Dimensions: 43" x 41" x 56"H

Standard Features:
- 6° Low angle
- PLC controlled cycle
- Foot pedal operated
- Adjustable Material Stops
- Up to 2" thick material
- Cycle Time: 1.75 - 2 Sec
- Tooling Included

Technical Data and Specifications:
- Router Bit: 3/8” Solid Carbide, Rough Mill
- Drill Bit: 9/64” Brad and Spur TiN-Coated Bit
- Router: 24,000 RPM, 12 A, 2.25 HP
- Drill: 31,000 RPM, 4.5 A, 7/8 HP
- Electrical: 110V 15A
- Air: 2 CFM at 80 - 100 PSI
- Work height: 36"
- Footprint: 27.75" x 20.5"
- Table Area: 15.75" x 23.75"
- Dust Port: 4"

- Shipping Weight: 350 LBS
- Shipping Dimensions: 45" x 32" x 56

R700 & R900 Sanders, Others.

Standard Features:
- 3 HP Abrasive Belt Drive Motor, TEFC
- 6" X 132" Abrasive Belt Size
- (2) 6" X 49" Ground Steel Platens
- (2) Bias Tilting 12" X 65" Worktables
- End Sanding Unit with 3" X 3" Drum
- (2) 4" Diameter Dust Hoods
- Wired 1-Phase 230V, 60 Hz.

Shipping Dimensions: 41" X 82" X 58"H
Shipping Weight: 730 LBS

Standard Features:
- 23-Spindle Gear Driven Drill Head on 32mm Centers
- (12) Right Hand, (11) Left Hand
- 10mm Bored Female Collets With Set Screw Lock
- 0-2" Adjustable Boring Depth
- 0-3" Height Adjustment
- (2) End Boring Fences
- (4) 2.00" Bore Clamping Cylinder
- Carriage Adjusting Jack
- (1) Emergency Stop Button
- Foot Actuated Boring Cycle
- Tooling Not Included

Technical Data and Specifications:
- Drive Motors: 3 HP
- RPM: 3,450
- Spindle Centers: 32mm
- Collet Size: 10mm
- Maximum Material Thickness: 2.125"
- Electrical: 230V, 3Ø, 60Hz, 60A or 460V, 3Ø, 60Hz, 30A
- Air: 2 CFM at 80 – 100 PSI
- Work height: 33.5″
- Footprint: 49″ x 48″
- Table Area: 20″ x 42″

Shipping Weight: 1,485 LBS
Shipping Dimensions: 53″ L x 52″ W x 53" H

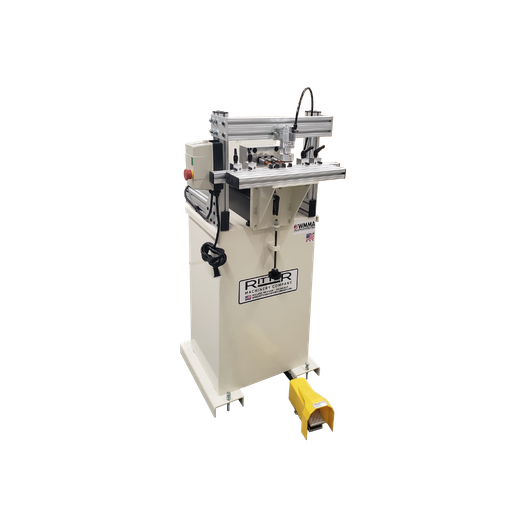

Standard Features:
- Triple Spindle Gear Driven Drill Head
- 32mm Spindle Spacing
- 10mm Bored Female Collets With Set Screw Lock
- 0.75 HP Spindle Drive Motor, TEFC
- 0-2" Adjustable Boring Depth
- (4) Material Positioning Stops
- 2" Bore Clamping Cylinder
- Foot Actuated Boring Cycle
- 3450 RPM Spindle Speed
- 6" X 20" Table Area
- Tooling Not Included

Technical Data and Specifications:
- Electrical: 110/120V, 60Hz, 10A
- Air: 80-100 PSI
- Work Height: 40"
- Footprint: 24" x 24"

Shipping Weight: 381 LBS
Shipping Dimensions: 38” X 38” X 55”

Standard Features:
- Triple Spindle Gear Driven Drill Head
- 1" Spindle Spacing
- 7/16-14 Female Threaded Collets (2) L/H (1) R/H
- 0.75 HP Spindle Drive Motor, TEFC
- 0-2" Adjustable Boring Depth
- (4) Material Positioning Stops
- 2" Bore Clamping Cylinder
- Foot Actuated Boring Cycle
- 3450 RPM Spindle Speed
- 6" X 20" Table Area
- Tooling Not Included

Technical Data and Specifications:
- Electrical: 110/120V, 60Hz, 10A
- Air: 80-100 PSI
- Work Height: 40"
- Footprint: 24" x 24"

Shipping Weight: 381 LBS
Shipping Dimensions: 38” X 38” X 55”

Standard Features
Single spindle head
- 7/16-14 RH Female Threaded Collet
- 0.75 HP Spindle Drive Motor, TEFC
- 0-2" Adjustable Boring Depth
- (4) Material Positioning Stops
- 2" Bore Clamping Cylinder
- Foot Actuated Boring Cycle
- 3450 RPM Spindle Speed
- 6" X 20" Table Area
- Tooling Not Included

Technical Data and Specifications
- Electrical: 110/120V, 60Hz, 10A
- Air: 80-100 PSI
- Work Height: 40"
- Footprint: 24" x 24"

Shipping Weight: 381 LBS
Shipping Dimensions: 38” X 38” X 55”

Standard Features:
- (2) 23-Spindle Gear Driven Drill Head on 32mm Centers
- (24) Right Hand, (22) Left Hand
- 4"-24" Centers Between Rows
- Digital Readout Front Head Position Display
- Precision Linear Head Ways
- (4) Quick Set Drill Head Position Stops
- Rear Drill Row Nesting
- 48" Back Fence with (4) Adjustable Material Stops
- Right and Left Hand Work Stations
- (2) Air Index Pins
- (2) Spring Operated Material Clamps
- (2) Position Drill Depth Stop Turret
- Pneumatic Foot Actuated Boring Cycle
- Tooling Not Included

Technical Data and Specifications:
- Drive Motor: 3 HP
- Spindle Speed: 1750 RPM
- Spindle Centers: 32mm
- Collet Size: 10mm
- Throat Capacity: 24"
- Maximum Material Thickness: 1.25"
- Electrical: 230V, 3Ø, 60Hz, 20A or 460V, 3Ø, 60Hz, 10A
- Air: 80-100 PSI, 2CFM
- Work height: 39″
- Footprint: 48″ x 43″
- Table Area: 30″ x 48″

Additional Options:
- H695 - 5mm LH Brad Point Bit 10mm Shank 57mm OAL
- H694 - 5mm RH Brad Point Bit 10mm Shank 57mm OAL
- Digital rear head location display

Shipping Weight: 1430 LBS
Shipping Dimensions: 56″ L x 55″ W x 74" H

Standard Features:
- 23-Spindle Gear Driven Drill Head on 32mm Centers
- (12) Right Hand, (11) Left Hand
- 60" Back Fence with (4) Adjustable Material Stops
- Right and Left Hand Work Stations
- (2) Spring Loaded Index Pins
- (2) Spring Operated Material Clamps
- Adjustable Boring Depth
- Pneumatic Driven Boring Cycle
- Tooling Not Included

Technical Data and Specifications:
- Drive Motor: 3 HP
- Spindle Centers: 32mm
- Spindle Speed: 1750 RPM
- Collet Size: 10mm
- Throat Capacity: 12"
- Maximum Material Thickness: 1.25"
- Electrical: 230V, 1Ø, 60Hz, 9A, or 230V, 3Ø, 60Hz, 10A or 460V, 3Ø, 60Hz, 5A
- Air: 90-100 PSI
- Work height: 38.25″
- Footprint: 36″ x 60″
- Table Area: 14″ x 48″

Additional Options:
- R19F1 – 230V, 1Ø, 60Hz (2 HP Spindle Drive Motor, TEFC)

Shipping Weight: 645 LBS
Shipping Dimensions: 44″ L x 64″ W x 77" H

Standard Features:
- 13-Spindle Gear Driven Drill Head on 32mm Centers
- (7) Right Hand, (6) Left Hand
- 60" Back Fence with (4) Adjustable Material Stops
- Right and Left Hand Work Stations
- (2) Spring Loaded Index Pins
- (2) Spring Operated Material Clamps
- Manually Actuated Boring Cycle
- Spring Return Up Stroke
- Tooling Not Included

Technical Data and Specifications:
- Drive Motor: 0.75 HP
- Spindle Centers: 32mm
- Collet Size: 10mm
- Throat Capacity: 8"
- Maximum Material Thickness: 1.25"
- Electrical: 110V, 1Ø, 60Hz, 8.4A
- Air: N/A
- Work height: 33.25″
- Footprint: 38″ x 60″
- Table Area: 20″ x 48″

Shipping Weight: 508 LBS
Shipping Dimensions: 42″ L x 64″ W x 76" H

(1) Hold Down Beam
(3) Adjustable Hold Down Cylinders
(1) Coil hose for pneumatic screw gun
Upper and Lower Trolleys

Standard Features:
- 4'x8' Assembly Table
- 30° Vertical Easel
- Hold Down Beam with (3) Adjustable Hold Down Cylinders
- Squaring Bars on Left, Right and Bottom Sides
- (4) Universal Clamping Cylinders & Manifold
- Squaring Bar and Fence
- 2" Cylinder Position Grid Pattern
- 3" Bore Clamp Cylinder Housing
- Heavy Duty Steel Frame
- Perforated Steel Table
- 6 port Manifold with 1/4" NPT Regulator/Gage
- Adjustable pressure from 20 to 130 PSI
- Foot Treadle
- (1) Coilhose for Pneumatic Screw Gun
- Screw Gun Not Included

Technical Data and Specifications:
- Usable Table Area:
- Work Height: 31"
- Footprint: 115" L x 41" D x 79" H
- Electrical: N/A
- Air: 100 PSI

Additional options [Not Included in Price]:
-R275A - Face Frame Assembly Clamp Arm
- U300E05 - Additional AC-20 Universal Clamp Cylinder
-U37515 - Additional Manifold Assembly
- U300E16 - Additional Foot Treadle Assembly

Shipping Weight: 1000 LBS
Shipping Dimensions: 58" X 122" X 30" H

For R215E/A Assembly Tables.

(1) Hold Down Beam
(3) Adjustable Hold Down Cylinders
(1) Coilhose for pneumatic screw gun
Upper and Lower Trolleys

Standard Features:
- 5'x8' Assembly Table
- 45 Degree Vertical Easel
- Hold Down Beam with (3) Adjustable Hold Down Cylinders
- Squaring Bars on Left and Bottom Sides
- 1" Thick Laminated Surfaced Table
- Heavy Duty Steel Frame
- (1) Coilhose for Pneumatic Screw Gun
- Screw Gun Not Included

Technical Data and Specifications:
- Usable Table Area: 58.5" x 94.5"
- Footprint: 117" L x 48" D
- Electrical: N/A
- Air: 100 PSI

Additional Options:
R215A - Face Frame Assembly Clamp Arm

- Shipping Weight: 1200 LBS
- Shipping Dimensions: 68" X 120" X 30" H

Standard Features:
- 5'x12' Assembly Table
- Open Back For 60" Plus Frame Height
- 45 Degree Vertical Easel
- Hold Down Beam with (5) Adjustable Hold Down Cylinders
- Squaring Bars on Left, Right and Bottom Sides
- 1" Thick Laminated Surfaced Table
- Heavy Duty Steel Frame
- (1) Coilhose for Pneumatic Screw Gun
- Screw Gun Not Included

Technical Data and Specifications:
- Usable Table Area: 58.5" x 141"
- Footprint: 165" L x 48" D
- Electrical: N/A
- Air: 100 PSI

Additional Options:
R210A - Face Frame Assembly Clamp Arm

- Shipping Weight: 1300 LBS
- Shipping Dimensions: 68" X 169" X 30" H

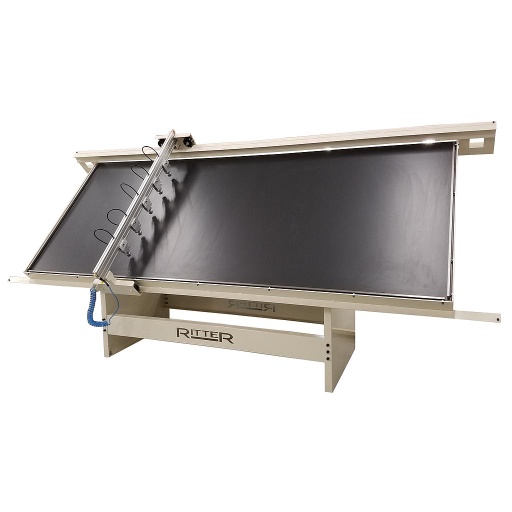

Standard Features:
- 5'x12' Assembly Table
- 45 Degree Vertical Easel
- Hold Down Beam with (5) Adjustable Hold Down Cylinders
- Squaring Bars on Left, Right and Bottom Sides
- 1" Thick Laminated Surfaced Table
- Heavy Duty Steel Frame
- (1) Coilhose for Pneumatic Screw Gun
- Screw Gun Not Included

Technical Data and Specifications:
- Usable Table Area: 58.5" x 141"
- Footprint: 165" L x 48" D
- Electrical: N/A
- Air: 100 PSI

Additional Options:
R200A - Face Frame Assembly Clamp Arm

- Shipping Weight: 1250 LBS
- Shipping Dimensions: 68" X 169" X 30" H

Standard Features:
- 1.5 HP Spindle Drive Motor, TEFC
- 1" Spindle Centers
- Manual Controls, 120 V
- Foot Actuated Boring Cycle
- 14 Degree Double Spindle
- 6,100 RPM Spindle Speed
- Ball Bearing Collet Guide Bushing Block
- 24" X 30" Table Area
- Adjustable Fence with (2) Stops
- Tooling included

Technical Data and Specifications:
- Electrical: 110V, 1Ø, 60Hz, 20A
- Air: 80-100 PSI
- Work Height: 38.25"
- Footprint: 34.5" x 25.25"

Additional Options:
- R220T3 – 230/460V, 3Ø, 60Hz

- Shipping Weight: 561 LBS
- Shipping Dimensions: 33" x 43" x 51" H
