Face Frame Table Parts

Replacement clamp heads, arms, hold-down cylinders, and related hardware to maintain your Ritter Face Frame Table.
Sort By Sort By: Featured
[R275A] Frame Assembly Arm, R275

Frame Assembly Arm, R275

(1) Hold Down Beam
(3) Adjustable Hold Down Cylinders
(1) Coil hose for pneumatic screw gun
Upper and Lower Trolleys
$ 3,090.00
[R215A] Frame Assembly Arm, R215

Frame Assembly Arm, R215

For R215E/A Assembly Tables.

(1) Hold Down Beam
(3) Adjustable Hold Down Cylinders
(1) Coilhose for pneumatic screw gun
Upper and Lower Trolleys
$ 3,090.00
[U300E16] Foot Pedal, Treadle Assembly, Pedal

Foot Pedal, Treadle Assembly, Pedal

$ 475.00
[A78] Valve, 3 Way Pilot Valve Ritter A78 Valve, 3 Way Pilot Valve

Valve, 3 Way Pilot Valve

U200A10 Slider Assy. Air Valve
$ 110.00
[U200A1014] Clamp Foot 1.25" w/ Rubber Pad & Set Screw Clamp Foot 1.25" w/ Rubber Pad & Set Screw

Clamp Foot 1.25" w/ Rubber Pad & Set Screw

For Ritter U200A15 Cylinder.
$ 35.28
[A303] 1/8" NPT, Exhaust Silencer, Flat

1/8" NPT, Exhaust Silencer, Flat

$ 3.50
[U200A0101] Beam Manifold, 68", 5 Port

Beam Manifold, 68", 5 Port

Manifold for R200A Clamp Beam Assembly
$ 420.00

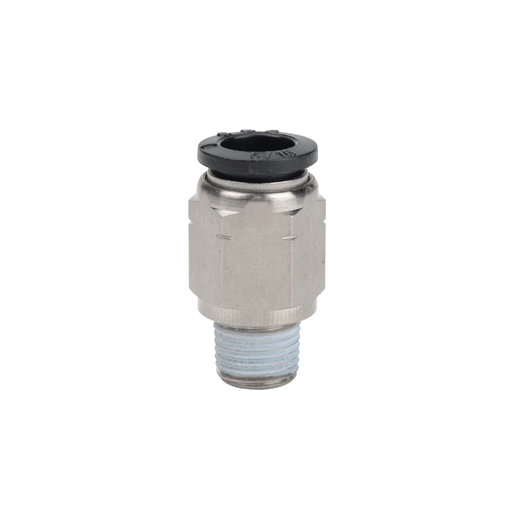

[A37] 1/8" NPT to 5/16" Tube, Male Straight

1/8" NPT to 5/16" Tube, Male Straight

$ 4.80
[A39] 1/8" NPT to 5/16" Tube, Male Elbow

1/8" NPT to 5/16" Tube, Male Elbow

$ 6.19
[U200A0112] Wheel Bushing

Wheel Bushing

- Same as H26
$ 7.60
[U200A10] Slider Assembly - Hold Down Clamp Slider Assembly - Hold Down Clamp

Slider Assembly - Hold Down Clamp

$ 645.00
[U200A15] Hold Down Cylinder Hold Down Cylinder Assembly

Hold Down Cylinder

- 2" Bore, 1" Stroke. (Cylinder Only, No Clamp Foot/Pad)
- 280lbft at 90 PSI
$ 345.00
[A31] Coil Hose w/ 1/4" NPT Fittings, 12'

Coil Hose w/ 1/4" NPT Fittings, 12'

$ 68.00
[S385] Slider Body Assembly Slider Body Assembly

Slider Body Assembly

- Includes Wear Pads
$ 139.50
[H175] Retaining Ring, 2.217 Dia, .049 Thick

Retaining Ring, 2.217 Dia, .049 Thick

Retaining Ring
$ 9.99

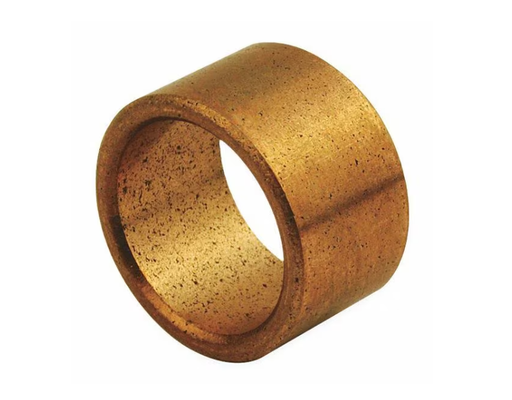

[H29] Bushing, Bronze .627 x .878 x .3125

Bushing, Bronze .627 x .878 x .3125

$ 11.99

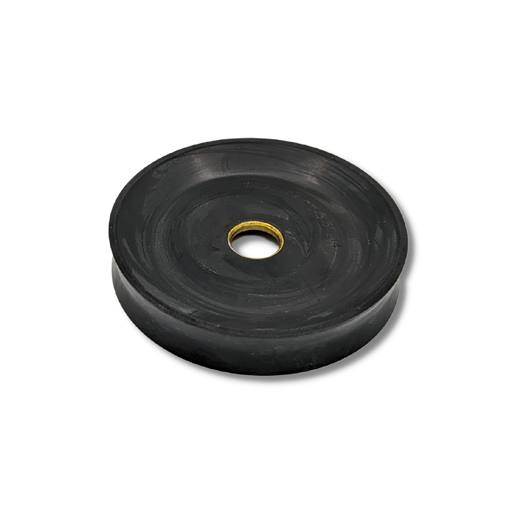

[A72] Piston Cup, 2" Ritter A72 Piston Cup, 2"

Piston Cup, 2"

2" Piston Cup
$ 34.99
[H191] Rubber Pad, 1.25"

Rubber Pad, 1.25"

1.25" Dia. rubber replacement pad for clamp foot , adhesive backed.
$ 3.50

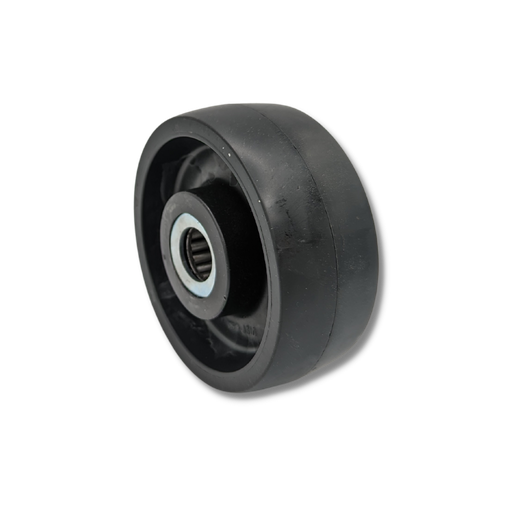

[H72] Wheel, 4" x 1.5" x .75" Bore Wheel, 4" x 1.5" x .75" Bore

Wheel, 4" x 1.5" x .75" Bore

$ 18.95
