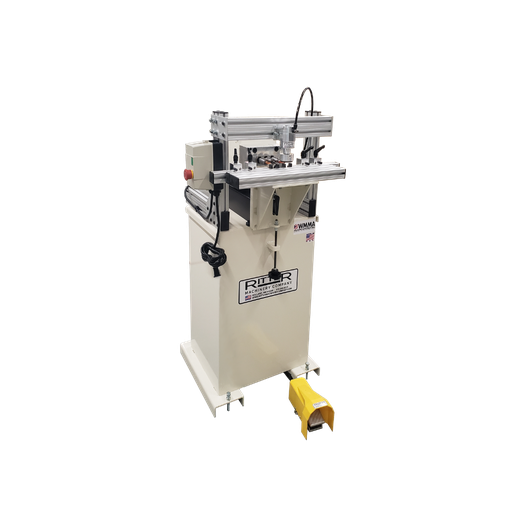

Standard Features:
- Triple Spindle Gear Driven Drill Head
- 32mm Spindle Spacing
- 10mm Bored Female Collets With Set Screw Lock
- 0.75 HP Spindle Drive Motor, TEFC
- 0-2" Adjustable Boring Depth
- (4) Material Positioning Stops
- 2" Bore Clamping Cylinder
- Foot Actuated Boring Cycle
- 3450 RPM Spindle Speed
- 6" X 20" Table Area
- Tooling Not Included

Technical Data and Specifications:
- Electrical: 110/120V, 60Hz, 10A
- Air: 80-100 PSI
- Work Height: 40"
- Footprint: 24" x 24"

Shipping Weight: 381 LBS
Shipping Dimensions: 38” X 38” X 55”

Standard Features
Single spindle head
- 7/16-14 Female Threaded Collet
- 0.75 HP Spindle Drive Motor, TEFC
- 0-2" Adjustable Boring Depth
- (4) Material Positioning Stops
- 2" Bore Clamping Cylinder
- Foot Actuated Boring Cycle
- 3450 RPM Spindle Speed
- 6" X 20" Table Area
- Tooling Not Included

Technical Data and Specifications
- Electrical: 110/120V, 60Hz, 20A
- Air: 80-100 PSI
- Work Height: 40"
- Footprint: 24" x 24"

Shipping Weight: 381 LBS
Shipping Dimensions: 38” X 38” X 55”

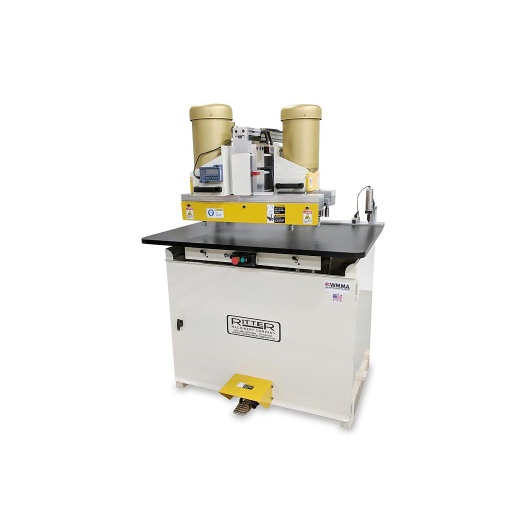

Standard Features:
- (2) 23-Spindle Gear Driven Drill Head on 32mm Centers
- (24) Right Hand, (22) Left Hand
- 4"-24" Centers Between Rows
- Digital Readout Front Head Position Display
- Precision Linear Head Ways
- (4) Quick Set Drill Head Position Stops
- Rear Drill Row Nesting
- 48" Back Fence with (4) Adjustable Material Stops
- Right and Left Hand Work Stations
- (2) Air Index Pins
- (2) Spring Operated Material Clamps
- (2) Position Drill Depth Stop Turret
- Pneumatic Foot Actuated Boring Cycle
- Tooling Not Included

Technical Data and Specifications:
- Drive Motor: 3 HP
- Spindle Speed: 1750 RPM
- Spindle Centers: 32mm
- Collet Size: 10mm
- Throat Capacity: 24"
- Maximum Material Thickness: 1.25"
- Electrical: 230V, 3Ø, 60Hz, 20A or 460V, 3Ø, 60Hz, 10A
- Air: 80-100 PSI, 2CFM
- Work height: 39″
- Footprint: 48″ x 43″
- Table Area: 30″ x 48″

Additional Options:
- H695 - 5mm LH Brad Point Bit 10mm Shank 57mm OAL
- H694 - 5mm LH Brad Point Bit 10mm Shank 57mm OAL
- Digital rear head location display

Shipping Weight: 1430 LBS
Shipping Dimensions: 56″ L x 55″ W x 74" H

Standard Features:
- 4'x8' Assembly Table
- 30° Vertical Easel
- Hold Down Beam with (3) Adjustable Hold Down Cylinders
- Squaring Bars on Left, Right and Bottom Sides
- (4) Universal Clamping Cylinders & Manifold
- Squaring Bar and Fence
- 2" Cylinder Position Grid Pattern
- 3" Bore Clamp Cylinder Housing
- Heavy Duty Steel Frame
- Perforated Steel Table
- 6 port Manifold with 1/4" NPT Regulator/Gage
- Adjustable pressure from 20 to 130 PSI
- Foot Treadle
- (1) Coilhose for Pneumatic Screw Gun
- Screw Gun Not Included

Technical Data and Specifications:
- Usable Table Area:
- Work Height: 31"
- Footprint: 115" L x 41" D x 79" H
- Electrical: N/A
- Air: 100 PSI

Additional options [Not Included in Price]:

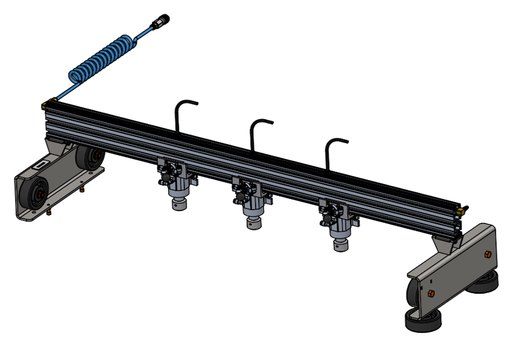

-R275A - Face Frame Assembly Clamp Arm
- U300E05 - Additional AC-20 Universal Clamp Cylinder
-U37515 - Additional Manifold Assembly
- U300E16 - Additional Foot Treadle Assembly

Shipping Weight: 1000 LBS
Shipping Dimensions: 58" X 122" X 30" H

Standard Features:
- 3'x6' Assembly Table
- 30° Vertical Easel
- Hold Down Beam with (3) Adjustable Hold Down Cylinders
- Squaring Bars on Left, Right and Bottom Sides
- (4) Universal Clamping Cylinders & Manifold
- 2" Cylinder Position Grid Pattern
- 3" Bore Clamp Cylinder Housing
- Heavy Duty Steel Frame
- Perforated Steel Table
- 6 port Manifold with 1/4" NPT Regulator/Gage
- Adjustable pressure from 20 to 130 PSI
- Foot Treadle
- (1) Coilhose for Pneumatic Screw Gun
- Screw Gun Not Included

Technical Data and Specifications:
- Usable Table Area: 33.5" x 71"
- Work Height: 33.25"
- Footprint: 91" L x 47" D x 67" H
- Electrical: N/A
- Air: 100 PSI

Additional options:
- R475A - Face Frame Assembly Clamp Arm
- U300E05 - Additional AC-20 Universal Clamp Cylinder
- U37515 - Additional Manifold Assembly
- U300E16 - Additional Foot Treadle Assembly

Shipping Weight: 714 LBS
Shipping Dimensions: 48" X 96" X 27" H

U200A15 Cylinder Rebuild Kit
- (1) 2" Piston Cup
- (1) Compression Spring
- (1) Cap O-ring
- (1) Nose Bushing
- (1) Retaining Ring

Standard Features:
- Fits any 3/4" wide slot, 3/8" deep
- 2" X 12" capacity
- (3) Adjustable hold down clamps
- Weight: 38 LBS

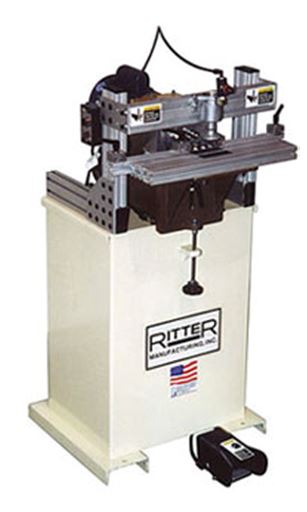

Standard Features:
- Triple Spindle Gear Driven Drill Head
- 1" Spindle Spacing
- 7/16-14 Female Threaded Collets (2) L/H (1) R/H
- 0.75 HP Spindle Drive Motor, TEFC
- 0-2" Adjustable Boring Depth
- (4) Material Positioning Stops
- 2" Bore Clamping Cylinder
- Foot Actuated Boring Cycle
- 3450 RPM Spindle Speed
- 6" X 20" Table Area
- Tooling Not Included

Technical Data and Specifications:
- Electrical: 110/120V, 60Hz, 20A
- Air: 80-100 PSI
- Work Height: 40"
- Footprint: 24" x 24"

Shipping Weight: 381 LBS
Shipping Dimensions: 38” X 38” X 55”

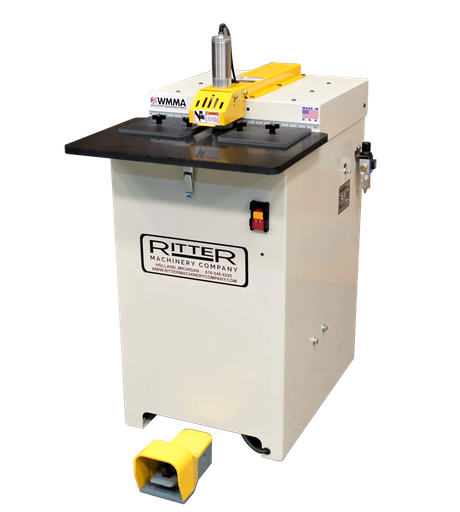

R2061, R2063

Ritter H120 Lock Handle

Standard Features:
- 1.5 HP Spindle Drive Motor, TEFC
- 1" Spindle Centers
- Manual Controls, 120 V
- Foot Actuated Boring Cycle
- 14 Degree Double Spindle
- 6,100 RPM Spindle Speed
- Ball Bearing Collet Guide Bushing Block
- 24" X 30" Table Area
- Adjustable Fence with (2) Stops
- Tooling included

Technical Data and Specifications:
- Electrical: 110V, 1Ø, 60Hz, 20A
- Air: 80-100 PSI
- Work Height: 38.25"
- Footprint: 34.5" x 25.25"

Additional Options:
- R220T3 – 230/460V, 3Ø, 60Hz

- Shipping Weight: 561 LBS
- Shipping Dimensions: 33" x 43" x 51" H
