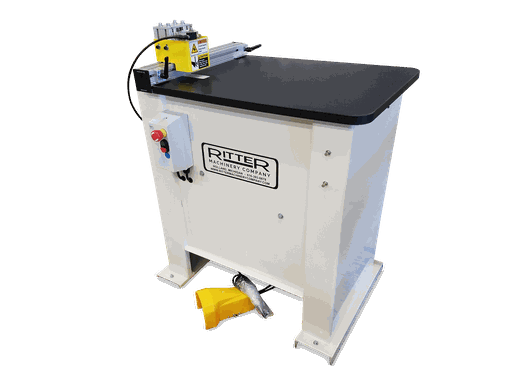

RITTER R220T - Double Spindle Pocket Hole Drill


Designed for pocket joinery face frame construction. The Ritter R220T pocket hole drill provides the most efficient and economical method of frame joinery. Flush and tight joint construction is provided on all types of wood. The elimination of dowel boring, dowel and glue insertion, clamping time and joint misalignment provides up to 50% reduction in frame construction. The ability to disassemble a frame and reposition a joint without the loss of material adds to the systems productivity. The design of the pocket borer eliminates the need for glue to be applied to the joint.

Standard Features:

  • 1.5 HP Spindle Drive Motor, TEFC
  • Foot Actuated Boring Cycle
  • 14 Degree Single Spindle
  • 6,100 RPM Spindle Speed
  • 24" x 30" Table Area
  • Adjustable Fence with (2) Stops
  • Tooling Included
  • Interchangeable Head with R220T

Technical Data and Specifications:

  • Electrical: 110/120V, 60Hz, 20A
  • Air: 80-100 PSI
  • Work Height: 38.25"
  • Footprint: 34.5" x 25.25"

Additional options:

  • R220T3 – 1.5 HP 3-Phase 230/460 Volt
  • R220T.20 - 20mm drill spindle spacing

Shipping Weight: 561 LBS
Shipping Dimensions: 33” X 43” X 51”
