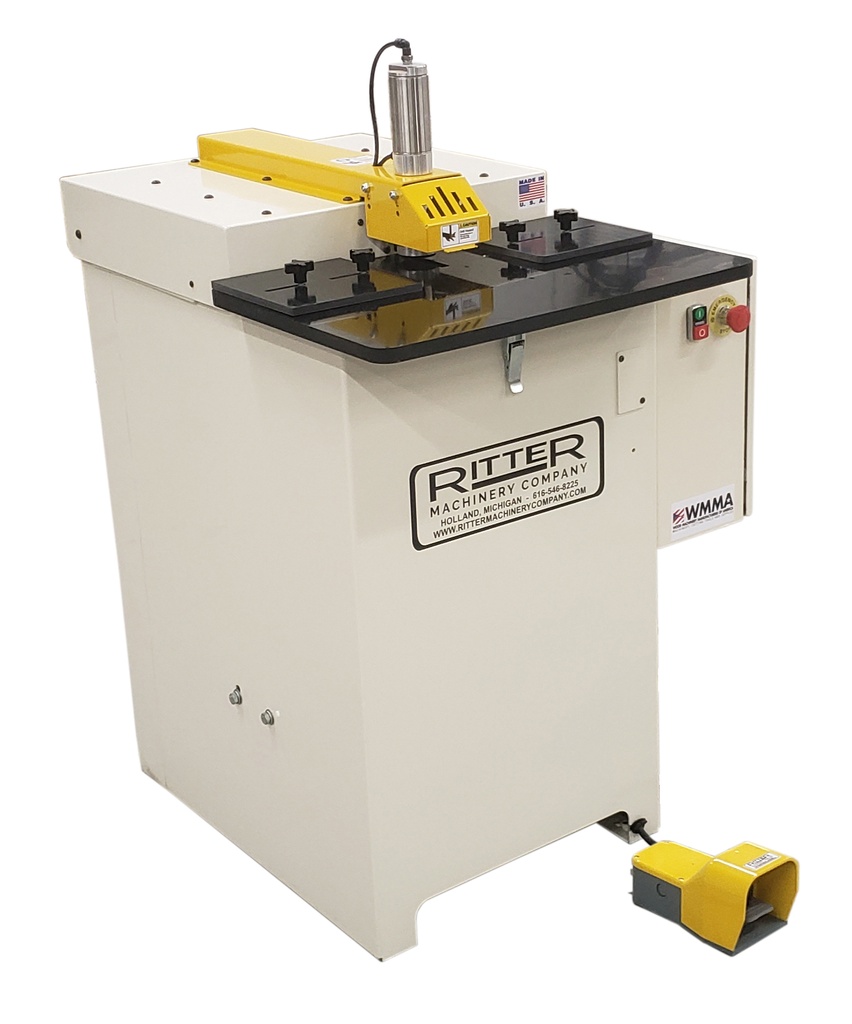

RITTER R2063 Low Angle Pocket Cutter
Description:
The R2063 is one of Ritter's pocket hole machines and is used for routing a single pocket hole for cabinet face frame assembly. It is part of the R200 assembly system that includes the R200E/A and is sold separately.
Standard Features:
- 6° Low angle
- PLC controlled cycle
- Foot pedal operated
- Adjustable Material Stops
- Up to 2″ thick material
- Cycle Time: 1.75 – 2 Sec
- Tooling Included
Technical Data and Specifications:
- Router Bit: 3/8” Solid Carbide, Rough Mill
- Drill Bit: 9/64” Brad and Spur TiN-Coated Bit
- Router: 24,000 RPM, 8 A, 2 HP
- Drill: 22,000 RPM, 0.9 HP, 5.5 CFM (Intermittent)
- Electrical: 230V, 3Ø, 10A
- Air: 2 CFM at 80 – 100 PSI
- Work height: 36″
- Footprint: 27.75″ x 20.5″
- Table Area: 15.75″ x 23.75″
- Dust Port: 4″
| Voltage (Old) | 230V, 3Ø, 60Hz, 460V, 3Ø, 60Hz, 230V, 1Ø, 60Hz |
| Table Size | Standard Width Table, 48" Wide Table |
