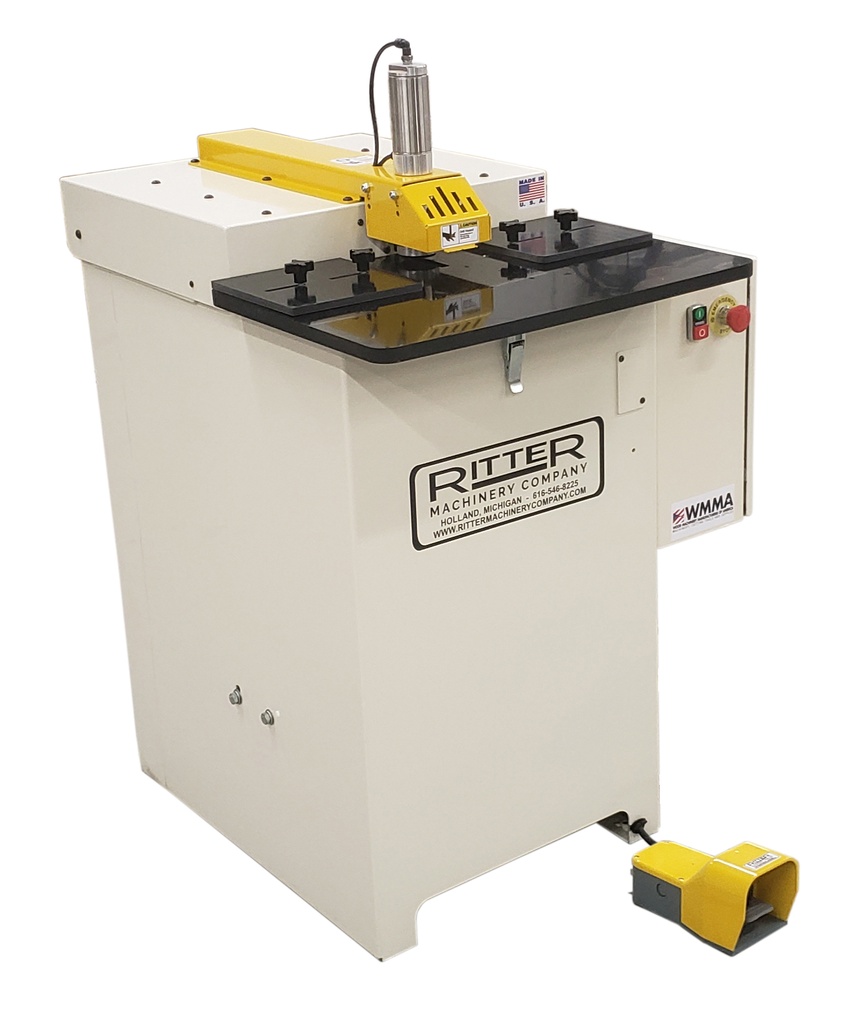

RITTER R2063 Low Angle Pocket Cutter

The R2063 is one of Ritter's pocket hole machines and is used for routing a single pocket hole for cabinet face frame assembly. Full features and specifications below.

$ 8,690.00 $ 8,690.00

  • Voltage
  • Table Size
Voltage 230V, 3Ø, 60Hz, 460V, 3Ø, 60Hz, 230V, 1Ø, 60Hz
Table Size Standard Width Table, 48" Wide Table

Description

The R2063 is one of Ritter's pocket hole machines and is used for routing a single pocket hole for cabinet face frame assembly. It is part of the R200 assembly system that includes the R200E/A and is sold separately.

Standard Features

  • 6° Low angle
  • PLC controlled cycle
  • Foot pedal operated
  • Adjustable Material Stops
  • Up to 2″ thick material
  • Cycle Time: 1.75 – 2 Sec
  • Tooling Included

Technical Data and Specifications

Router Bit3/8” Solid Carbide, Rough Mill
Drill Bit9/64” Brad and Spur TiN-Coated Bit
Router24,000 RPM, 8 A, 2 HP
Drill22,000 RPM, 0.9 HP, 5.5 CFM (Intermittent)
Electrical230V, 3Ø, 10A
Air2 CFM at 80 – 100 PSI
Work height36″
Footprint27.75″ x 20.5″
Table Area15.75″ x 23.75″
Dust Port4″
Shipping Weight300 LBS
Shipping Dimensions38″ x 25″

Additional Options

  • 48″ Wide Table
  • R2063 - 1-Phase 230 Volt
  • R2061 – 1-Phase 110 Volt
