Ritter Machine of the Month: Ritter R275E/A
Jake Mulder

The Ritter R275E/A Mini-Framer Face Frame Assembly table is versatile, heavy-duty and user-friendly. With a clamp arm and Ritter’s popular side-clamping cylinders, the R275E/A offers the best of both worlds allowing you to assemble 5-piece doors and face frames. The R275E/A is a great choice when shop space is at a premium.

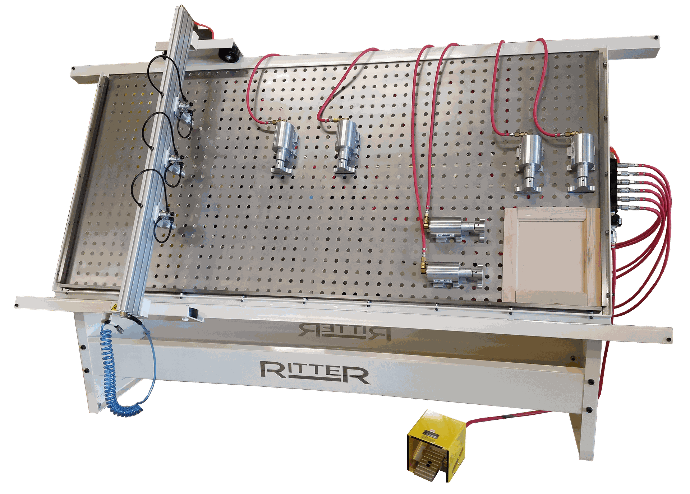

Ritter R275E/A Combination Face Frame and Door Clamping Easel

Standard Features:
4'x8' Assembly Table
30° Vertical Easel
Hold Down Beam with (3) Adjustable Hold Down Cylinders
1-5/16" Clearance Under Vertical Cylinders
Squaring Bars on Left, Right and Bottom Sides
(4) Universal Clamping Cylinders & Manifold
​706.8 LBS of force at 100 PSI
​​​3" Bore Clamp Cylinder Housing
Heavy Duty Steel Frame
Perforated Steel Table
​2" Cylinder Position Grid Pattern
6 port Manifold with 1/4" NPT Regulator/Gage
Adjustable pressure from 20 to 130 PSI
Foot Treadle
Heavy Duty Steel Frame
(1) Coilhose for Pneumatic Screw Gun
Screw Gun Not Included
Technical Data and Specifications:
Usable Table Area: 95" x 45.5"
Work Height: 31"
Footprint: 115" L x 41" D x 79" H
Electrical: N/A
Air: 100 PSI
Additional options:
R275A - Face Frame Assembly Clamp Arm
U300E05 - Additional AC-20 Universal Clamp Cylinder
U37515 - Additional Manifold Assembly
U300E16 - Additional Foot Treadle Assembly
