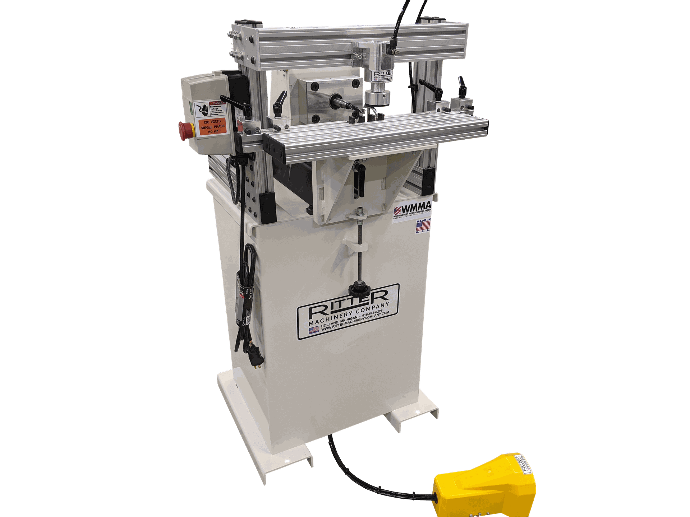

Designed for a dedicated and accurate boring center with single, double or triple spindle boring capability. Stile and rail boring set-up features help eliminate costly mistakes, rejected parts and increase production efficiency. The workpiece is held firmly against the table by a pneumatic clamp, and there is full adjustability of the index stops, bed height, and depth of cut.

Standard Features:

  • Single spindle head
  • 7/16-14 Female Threaded Collet
  • 0.75 HP Spindle Drive Motor, TEFC
  • 0-2" Adjustable Boring Depth
  • (4) Material Positioning Stops
  • 2" Bore Clamping Cylinder
  • Foot Actuated Boring Cycle
  • 3450 RPM Spindle Speed
  • 6" X 20" Table Area
  • Tooling Not Included

Technical Data and Specifications:

  • Electrical: 110/120V, 60Hz, 10A
  • Air: 2 CFM at 80 – 100 PSI
  • Work Height: 40"
  • Footprint: 24" x 24"

Shipping Weight: 381 LBS
Shipping Dimensions: 38” X 38” X 55”
