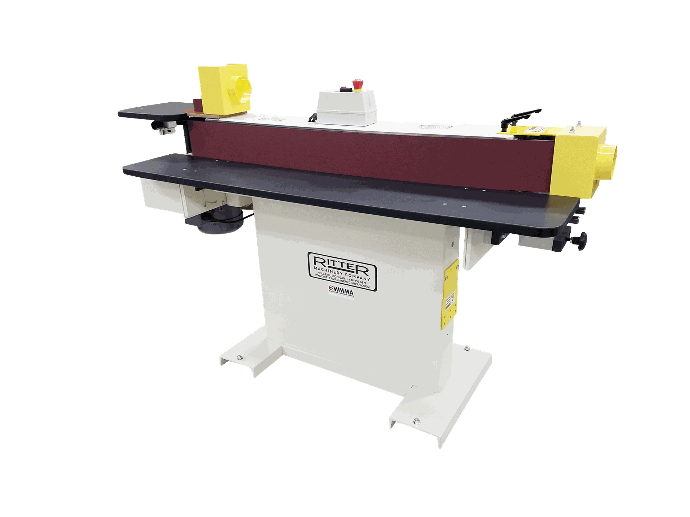

RITTER R701/R703 - 4" Horizontal Edge Belt Sander


The RITTER R701 is one of our most popular edge sanding machines. The R701 offers solid reliability with the durability you'd expect from a RITTER machine. Designed for use with edge finishing devices common to the furniture and custom woodworking industry. The ability to use the machine for a variety of edge finishing applications makes this the industry’s most universal edge belt sander.

Standard Features:

  • Double Sided Ground Steel Platen
  • Bias Tilting Tables
  • Full Dust Hood with 4" End Openings for Dust Collection
  • Pedestal Base
  • Controls Accessible From Both Sides
  • Magnetic Controls
  • End Sanding Kit with 3" x 3" Sanding Drum
  • Tiltable End Table

Technical Data and Specifications:

  • Belt Size: 4" x 132"
  • Platen Size: 4" x 49"
  • Drive Wheel: 6" x 4"
  • Drive Motor R701: 1.5 HP
  • Drive Motor R703: 2 HP
  • Electrical R701:  230V, 1Ø, 60Hz
  • Electrical R703: 230V, 3Ø, 60Hz or 460V, 3Ø, 60Hz
  • Air: N/A
  • Work height: 36.5″
  • Footprint: 31.5" x 80″
  • Table Area: 12″ x 65″

Shipping Weight: 730 LBS
Shipping Dimensions: 41″ L x 82″ W x 58" H
