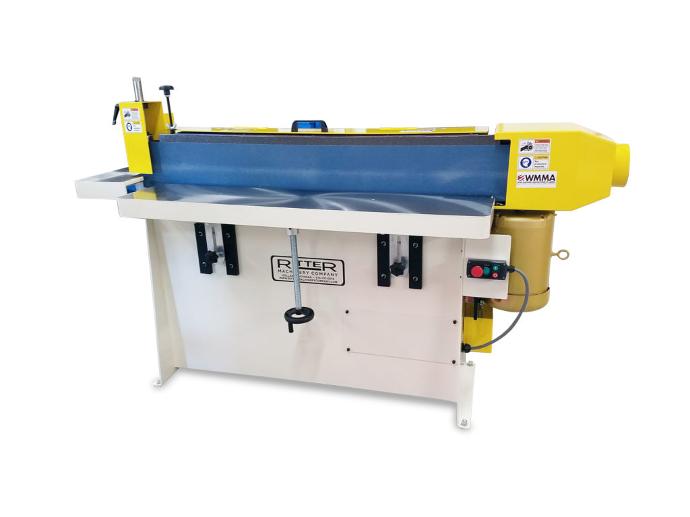

RITTER R25814 - 14" Oscillating Horizontal Drawer Box Sander


The RITTER R258 Oscillating Drawer Box Sander is perfect for sanding finger joint and/or dovetail drawer boxes. The R258 offers solid reliability with the durability you'd expect from a RITTER machine. Designed for use with edge finishing devices common to the furniture and custom woodworking industry. The ability to use the machine for a variety of edge finishing applications makes this the industry’s most universal edge belt sander.

Standard Features:

  • Single Sided Ground Steel Platen
  • 6-Way Adjusting Front Table
  • Swing Away Safety Dust Hood with 6" End Openings for Dust Collection
  • Adjustable Oscillation Stroke Cam
  • Dry-Lin Oscillation Ways
  • Air-Jet Belt Cleaning Device
  • Tiltable End Table
  • Magnetic Controls
  • Oscillation/Non-Oscillation Selector Switch

Technical Data and Specifications:

  • Belt Size: 14" x 144"
  • Platen Size: 16" x 56"
  • Oscillation: 0"- 1" Adjustable
  • Drive Wheel: 7.75" x 15"
  • Drive Motor: 10 HP
  • Oscillation Motor: 0.25 HP
  • Electrical: 230V, 3Ø, 60Hz or 460V, 3Ø, 60Hz
  • Air: 40-60 PSI
  • Work height: 36″
  • Footprint: 26.5" x 87″
  • Table Area: 12″ x 56″

Shipping Weight: 1,315 LBS
Shipping Dimensions: 97″ L x 38" W x 64" H
