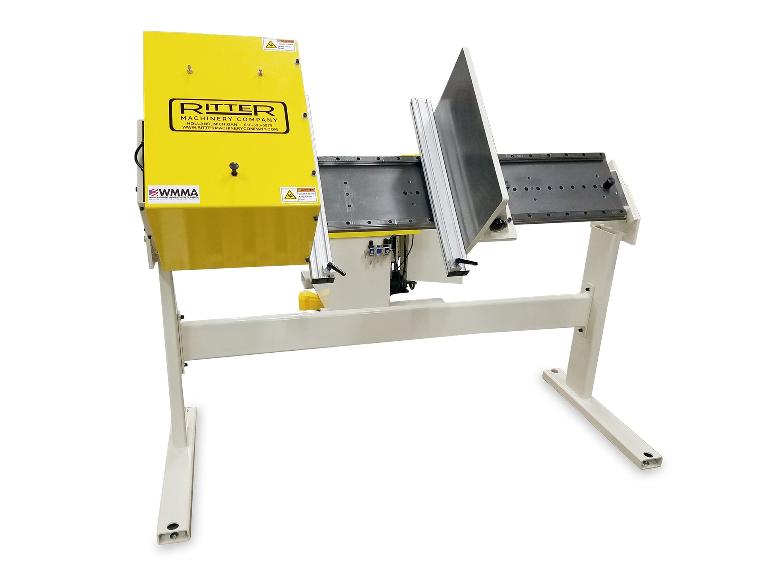

RITTER R885 - Drawer Box Clamp

Description:

Designed for small to moderate volume dovetailed and doweled cabinet drawer box assembly. The machine features manually controlled jaw opening and clamp cycle time.



Standard Features

• Smooth Steel Clamp Jaw Surface

• Pneumatic Controls
• Adjustable Clamping Pressure

• (2) 4" Bore Clamping Cylinder

• Manually Controlled Clamping
• Manually Adjusted Jaw Opening on Precision Rails
• Operator Control Panel
• 45 Degree Angle


Technical Data and Specifications

• Clamping Stroke: 3"
• Capacity: 14" x 24" x 36"
• Electrical: N/A
• Air: 2 CFM at 80 – 100 PSI
• Work height: 36″
• Footprint: 40″ x 72″

Shipping Weight: 1,080 LBS
Shipping Dimensions: 84″ L x 50″ W x 71" H
