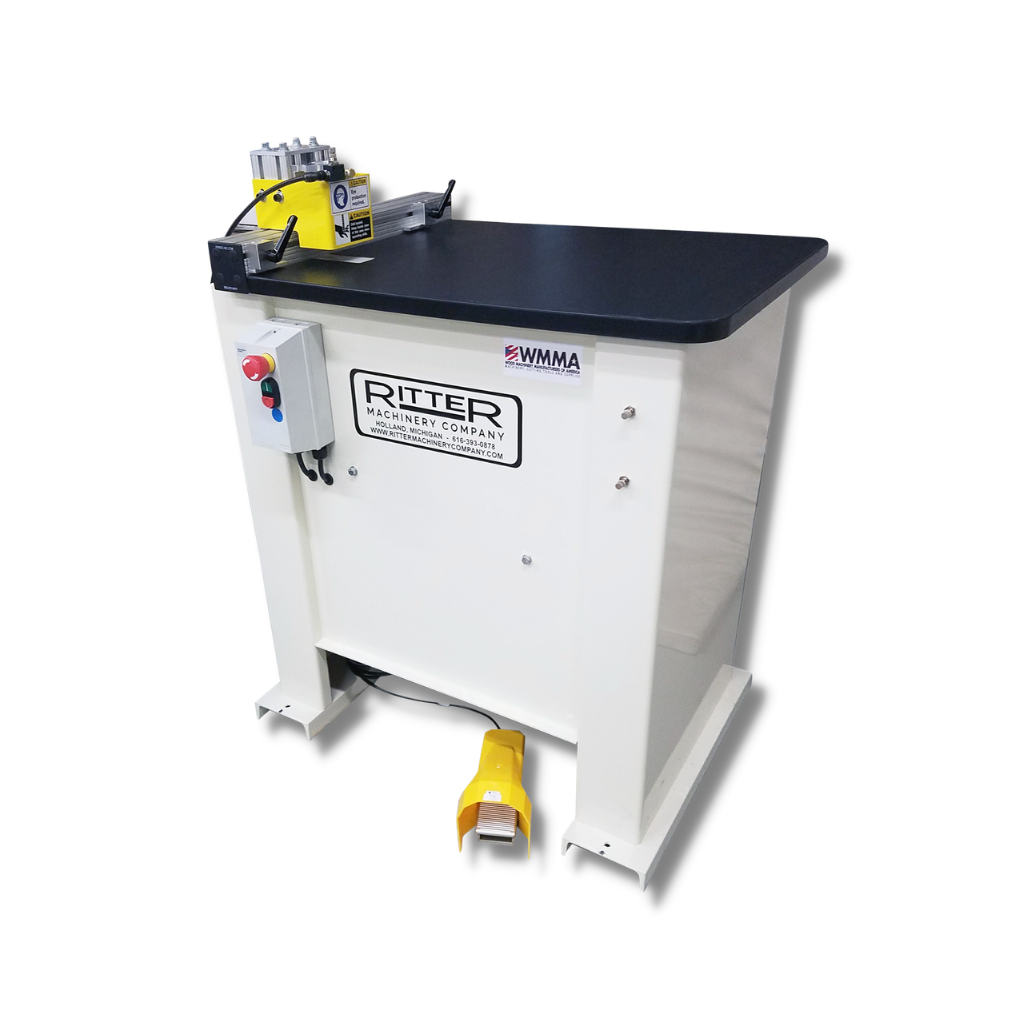

R220T Double Spindle Pocket Hole Drill

https://www.rittermachinery.com/web/image/product.template/19279/image_1920?unique=eae43ea

Standard Features:

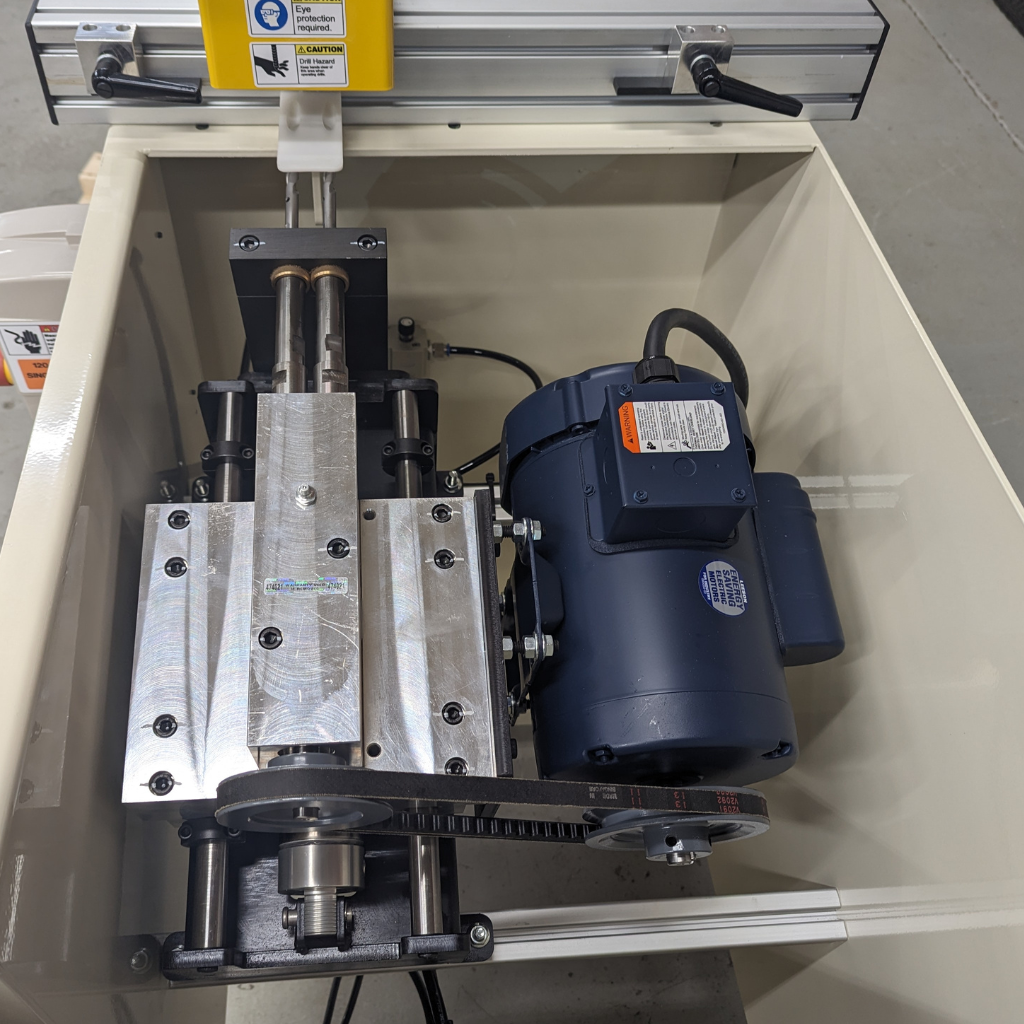

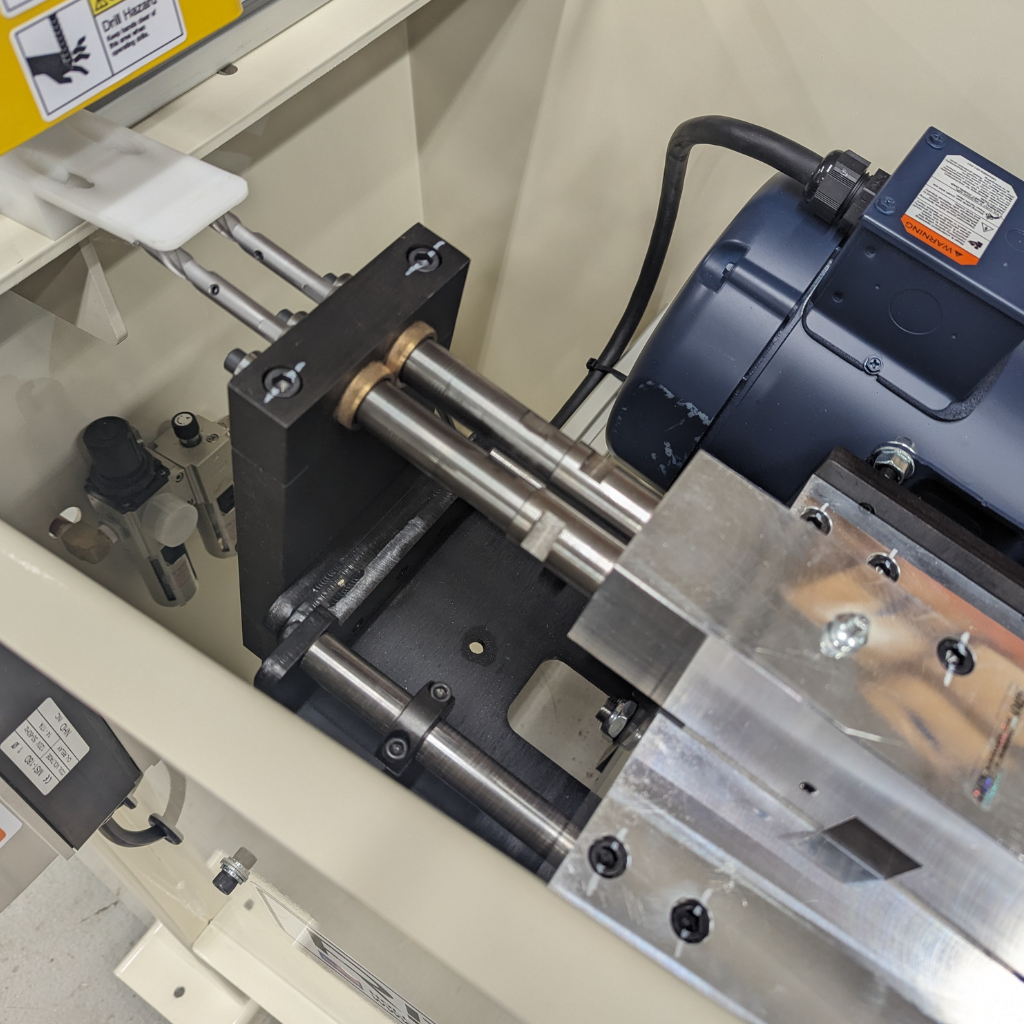

- 1.5 HP Spindle Drive Motor, TEFC
- 1" Spindle Centers
- Manual Controls, 120 V
- Foot Actuated Boring Cycle
- 14 Degree Double Spindle
- 6,100 RPM Spindle Speed
- Ball Bearing Collet Guide Bushing Block
- 24" X 30" Table Area
- Adjustable Fence with (2) Stops
- Tooling included

Technical Data and Specifications:
- Electrical: 110V, 1Ø, 60Hz, 20A
- Air: 80-100 PSI
- Work Height: 38.25"
- Footprint: 34.5" x 25.25"

Additional Options:
- R220T3 – 230/460V, 3Ø, 60Hz

- Shipping Weight: 561 LBS
- Shipping Dimensions: 33" x 43" x 51" H

7,990.00 7990.0 USD 7,990.00

7,990.00

Not Available For Sale Online

  • Voltage

This combination does not exist.

Voltage: 110V, 1Ø, 60Hz

Internal Reference: R220T
