Horizontal Boring

Standard Features:
- 23-Spindle Gear Driven Drill Head on 32mm Centers
- (12) Right Hand, (11) Left Hand
- 10mm Bored Female Collets With Set Screw Lock
- 0-2" Adjustable Boring Depth
- 0-3" Height Adjustment
- (2) End Boring Fences
- (4) 2.00" Bore Clamping Cylinder
- Carriage Adjusting Jack
- (1) Emergency Stop Button
- Foot Actuated Boring Cycle
- Tooling Not Included

Technical Data and Specifications:
- Drive Motors: 3 HP
- RPM: 3,450
- Spindle Centers: 32mm
- Collet Size: 10mm
- Maximum Material Thickness: 2.125"
- Electrical: 230V, 3Ø, 60Hz, 60A or 460V, 3Ø, 60Hz, 30A
- Air: 2 CFM at 80 – 100 PSI
- Work height: 33.5″
- Footprint: 49″ x 48″
- Table Area: 20″ x 42″

Shipping Weight: 1,485 LBS
Shipping Dimensions: 53″ L x 52″ W x 53" H

Standard Features:
- Triple Spindle Gear Driven Drill Head
- 32mm Spindle Spacing
- 10mm Bored Female Collets With Set Screw Lock
- 0.75 HP Spindle Drive Motor, TEFC
- 0-2" Adjustable Boring Depth
- (4) Material Positioning Stops
- 2" Bore Clamping Cylinder
- Foot Actuated Boring Cycle
- 3450 RPM Spindle Speed
- 6" X 20" Table Area
- Tooling Not Included

Technical Data and Specifications:
- Electrical: 110/120V, 60Hz, 10A
- Air: 80-100 PSI
- Work Height: 40"
- Footprint: 24" x 24"

Shipping Weight: 381 LBS
Shipping Dimensions: 38” X 38” X 55”

Standard Features:
- Triple Spindle Gear Driven Drill Head
- 1" Spindle Spacing
- 7/16-14 Female Threaded Collets (2) L/H (1) R/H
- 0.75 HP Spindle Drive Motor, TEFC
- 0-2" Adjustable Boring Depth
- (4) Material Positioning Stops
- 2" Bore Clamping Cylinder
- Foot Actuated Boring Cycle
- 3450 RPM Spindle Speed
- 6" X 20" Table Area
- Tooling Not Included

Technical Data and Specifications:
- Electrical: 110/120V, 60Hz, 10A
- Air: 80-100 PSI
- Work Height: 40"
- Footprint: 24" x 24"

Shipping Weight: 381 LBS
Shipping Dimensions: 38” X 38” X 55”

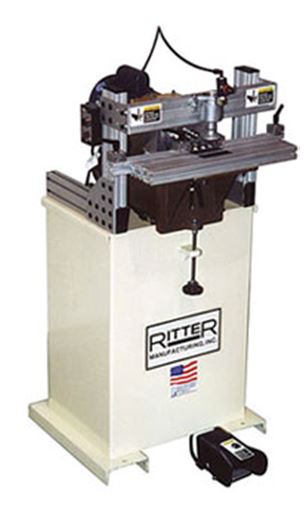

Standard Features
Single spindle head
- 7/16-14 RH Female Threaded Collet
- 0.75 HP Spindle Drive Motor, TEFC
- 0-2" Adjustable Boring Depth
- (4) Material Positioning Stops
- 2" Bore Clamping Cylinder
- Foot Actuated Boring Cycle
- 3450 RPM Spindle Speed
- 6" X 20" Table Area
- Tooling Not Included

Technical Data and Specifications
- Electrical: 110/120V, 60Hz, 10A
- Air: 80-100 PSI
- Work Height: 40"
- Footprint: 24" x 24"

Shipping Weight: 381 LBS
Shipping Dimensions: 38” X 38” X 55”
