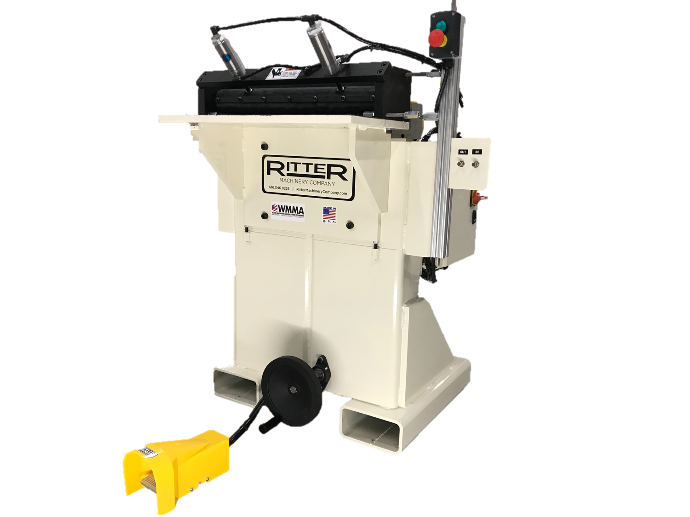

RITTER R853 - Horizontal/Vertical Drawer Drill


Designed for a dedicated and accurate boring center with single or multiple part capability. Operation sequence features help eliminate costly mistakes, rejected parts and increases production efficiency. Operator safety is greatly enhanced.

Standard Features

  • 13-Spindle Gear Driven Drill Head
  • (7) Right Hand, (6) Left Hand
  • Foot Actuated Boring Cycle
  • Backfence with Dust Clearance
  • Machined Steel Work Table
  • Horizontal / Vertical Boring Fence System
  • Horizontal / Vertical Material Clamp System
  • Adjustable Boring Depth Turret
  • (2) Dust Collection Ports
  • Emergency Stop Button
  • Tooling Not Included

Technical Data and Specifications

  • Drive Motor: 2 HP
  • Spindle Centers: 32mm
  • Collet Size: 10mm
  • Maximum Material Thickness: 0.75"
  • Maximum Drawer Box Height: 14"
  • Boring Depth Adjustment: 0-2"
  • Electrical: 230V, 3Ø, 60Hz, 5A or 460V, 3Ø, 60Hz, 2.5A
  • Air: 5 CFM at 80 – 100 PSI
  • Work height: 34″
  • Footprint: 40″ x 45″
  • Table Area: 12" x 24"

Shipping Weight: 1,005 LBS
Shipping Dimensions: 55″ L x 46″ W x 57" H

RITTER R853 Gallery

RITTER R853 Videos


• Backfence allows for positioning of both vertical and horizontal boring without machine set-up.

• Boring depth is controlled by the quick-change turret for different boring depth as required.

• Chip clearance is provided for by the backfence design to eliminate dust and chip build-up.

• Boring bits are guarded for operator safety.

• Unlimited drawer box width and depth.

• Maximum drawer box height is 16".

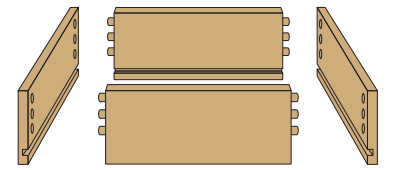

• Capacity for 5mm to 8mm dowels.

• Upper cabinet cases to 16" deep can also be accommodated.

Drawer Box Clamp
