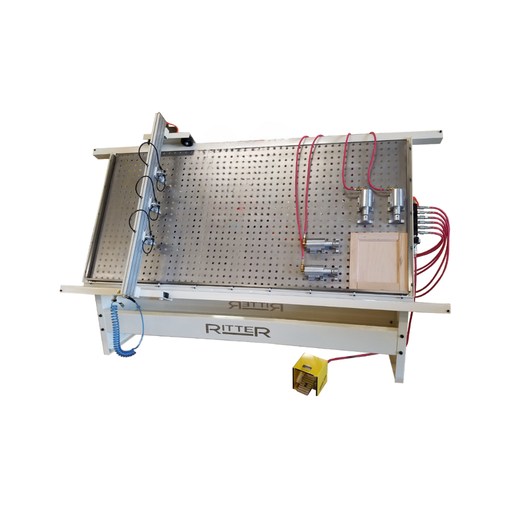

R275EA Mini-Framer Face Frame & Door Assembly System - 4' x 8'

Standard Features:
- 4'x8' Assembly Table
- 30° Vertical Easel
- Hold Down Beam with (3) Adjustable Hold Down Cylinders
- Squaring Bars on Left, Right and Bottom Sides
- (4) Universal Clamping Cylinders & Manifold
- Squaring Bar and Fence
- 2" Cylinder Position Grid Pattern
- 3" Bore Clamp Cylinder Housing
- Heavy Duty Steel Frame
- Perforated Steel Table
- 6 port Manifold with 1/4" NPT Regulator/Gage
- Adjustable pressure from 20 to 130 PSI
- Foot Treadle
- (1) Coilhose for Pneumatic Screw Gun
- Screw Gun Not Included

Technical Data and Specifications:
- Usable Table Area:
- Work Height: 31"
- Footprint: 115" L x 41" D x 79" H
- Electrical: N/A
- Air: 100 PSI

Additional options [Not Included in Price]:
-R275A - Face Frame Assembly Clamp Arm
- U300E05 - Additional AC-20 Universal Clamp Cylinder
-U37515 - Additional Manifold Assembly
- U300E16 - Additional Foot Treadle Assembly

Shipping Weight: 1000 LBS
Shipping Dimensions: 58" X 122" X 30" H
10,590.00 10590.0 USD
