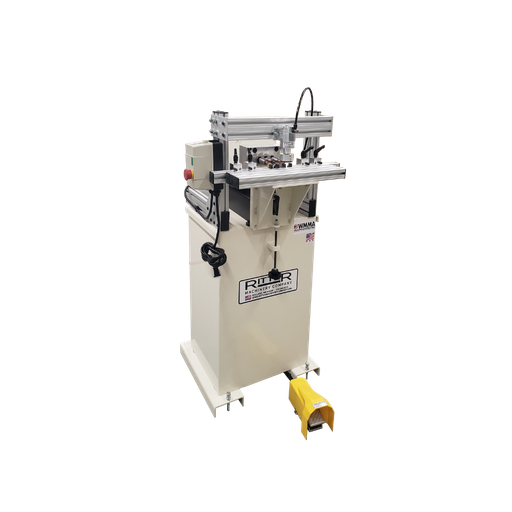

Horizontal Borer, 3 Spindle, 32mm Center

Standard Features:
- Triple Spindle Gear Driven Drill Head
- 32mm Spindle Spacing
- 10mm Bored Female Collets With Set Screw Lock
- 0.75 HP Spindle Drive Motor, TEFC
- 0-2" Adjustable Boring Depth
- (4) Material Positioning Stops
- 2" Bore Clamping Cylinder
- Foot Actuated Boring Cycle
- 3450 RPM Spindle Speed
- 6" X 20" Table Area
- Tooling Not Included

Technical Data and Specifications:
- Electrical: 110/120V, 60Hz, 10A
- Air: 80-100 PSI
- Work Height: 40"
- Footprint: 24" x 24"

Shipping Weight: 381 LBS
Shipping Dimensions: 38” X 38” X 55”
$ 5,990.00 5990.0 USD
